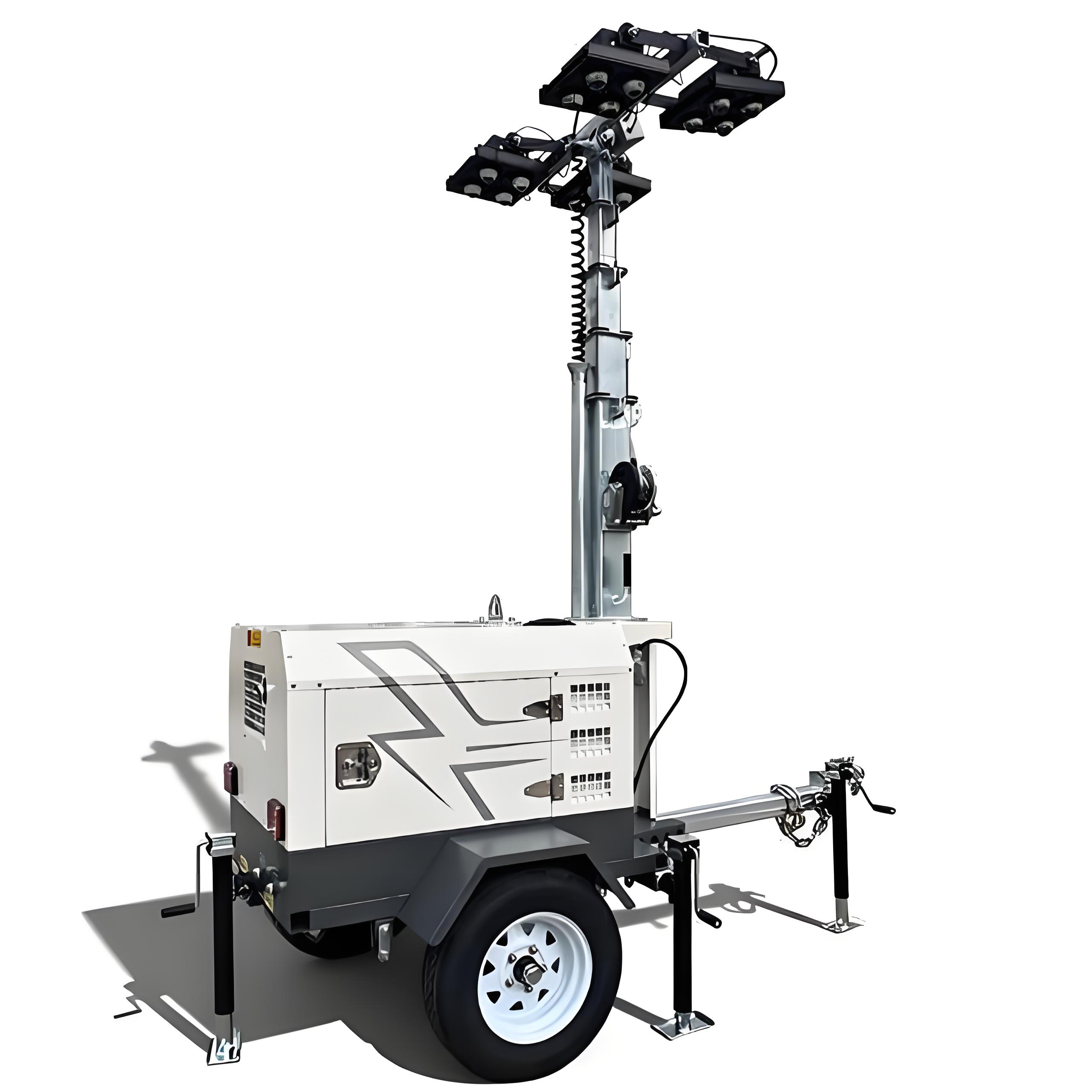

Combining practical functionality with robust engineering, our manually elevated light tower stands out as a top-selling solution worldwide. Its straightforward operation, compact footprint, and effortless towing capability ensure maximum efficiency on any job site.
Fully adaptable to your local market needs, the power unit can be equipped with air-cooled engines (Chinese brands, Kohler, Yanmar, Kubota) or water-cooled engines (Perkins, Yanmar, Kubota, Chinese brands), offering unmatched flexibility in performance and cost.
KLT-8000 V | KLT-7000 V | |||
LED | METAL HALIDE | LED | METAL HALIDE | |
Frequency | 50 I 60 | 50 I 60 | ||
Light Tower | ||||
Lamps(no.*w) | 4*350W | 4*1000W | 4*350W | 4*1000W |
Alternator output | 7KVA I 9KVA | 5KVA I 5.5KVA | ||
Voltage(V)AC | 220~240 I 240/120 | |||
Fuel tank capacity(L) | 100 | |||
Mast operating mode | Manual / Vertical | |||
Sound level(dBA)at 7m | 67 | 80 | ||
Engine | ||||
Brand/Model | Perkins 403D(A)-11; YANMAR3TNV76-GGE; KUBOTAD1105 | HL188FV | ||
Type | 3 cylinders, inline, four stroke, diesel | single cylinder, four stroke, diesel | ||
Output(Rated)(KW) | 8.4 | 9.5 | 5 | 6.5 | ||
Rated speed (rpm) | 1500 | 1800 | 3000 | 3600 | ||
Fuel / Cooling | Water | Air | ||
Alternator | ||||
Model / brand | 164 / BENA | ACFTS-5/Xingnuo | ||
Phase number | Single | Single | ||
Isulation | Class H | Class H | ||
Type | Single bearing, brushless, self-excitation | Single bearing, brushless, self-excitation | ||
Lighting | ||||
Lumens | 210000 | 440000 | 210000 | 440000 |
Housing Materials | Aluminum | Aluminum | Aluminum | Aluminum |
Mast Tower | ||||
Type | Manually Vertical Telescoping | |||
Total Height / Retracted | 8M / 2.52M | 6M / 1.4M | ||
Rotation | 360 Degree | |||
Mast Sections | Multi Sections | |||
Trailer and Canopy | ||||
Outriggers | 5 points manually extended outriggers and jacks | |||
Wheel and Rim | 185R/14"or 165R13" | |||
Trailer Suspension | Steel plate spring | |||
Towing Type | Ring or Ball hitch | |||
Canopy | Two doors access for easy maintenance with hanger for handling detachable roof, silent type | |||
Fork pocket and central lift point | Yes | |||
Auxiliary sockets | AC 2*16A | |||
Control System | ||||
Controller | SmartGen 1790 | |||
Connection protection | IP65 | |||
Electric protection | CHNT circut breaker / Emergency Stop | |||
Engine shutdown protection | Low oil pressure, high water tempreture | |||
Full Container Loading Quantity | ||||
20GP (Sets) | 8 | 10 | ||
40GP (Sets) | 20 | 22 | ||
