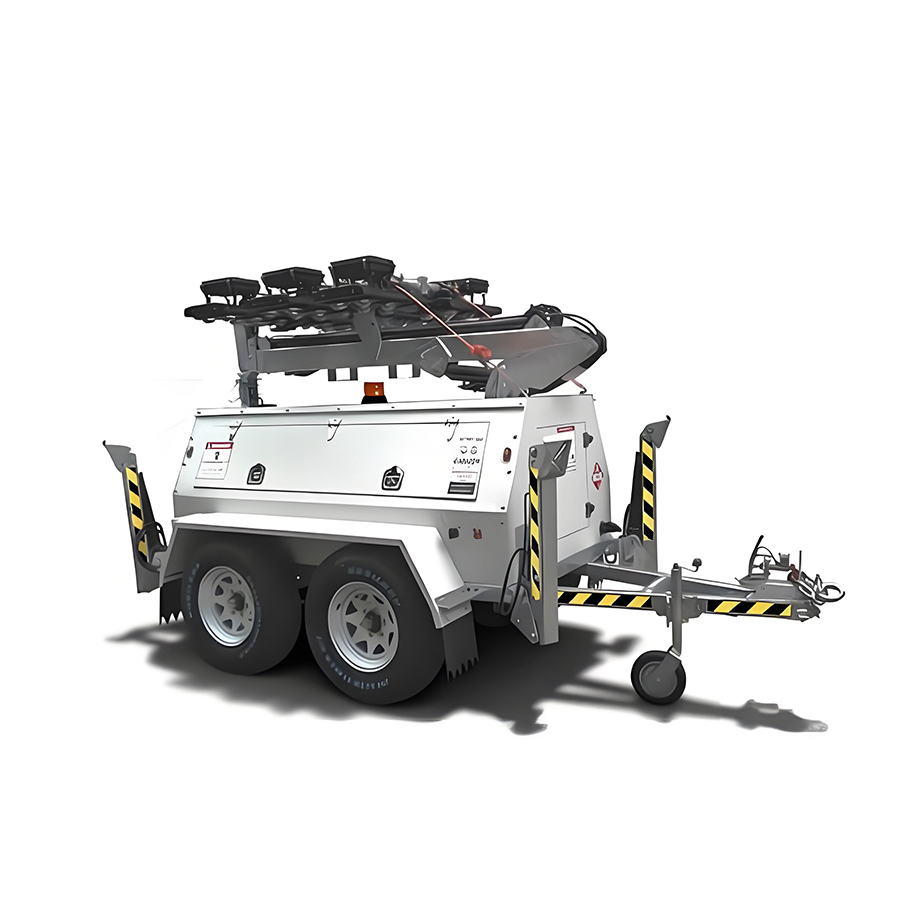

The KLT-10000 hydraulic series Lighting Tower is one of the most powerful lighting towers, entire hydraulic system with electrical controlling. More safety and reliability. The six shinning flood lights or twelve LED can illuminate an area of 300 meters radius. The extended height can be optionally designed to 18m.
• The Diesel Generator Set is equipped with Kubota/Yanmar/Kohler/Perkins engine and Stamford/Leroysomer/Meccalte/Linz/BENA/SINOCOX alternator with high quality control system.
• Using hydraulic power to drive tower mast , and making the unit easy to operate.
• Internal wiring harness adopts fast plug-in connection mode.
• Mobile trailer design. Short distance transportation can be directly operated by using tractor-assisted, convenient, fast and efficient.
• High efficiency Lamp lighting system, energy conservation, environmental protection.
Engine |
Engine Type | 3 cylinders in line, water cooled, four stroke, diesel |
Make | PERKINS | YANMAR | KOHLER |
Cooling | Water |
Output(Continuous) | 9-13kW/1500-1800Rpm |
Revolution(RPM) | 1500/1800 |
Fuel Capacity(L) | 300 |
Engine shutdown protection | Low oil pressure, Hight water tempreture |
Alternator |
Make / Model | Brushless Maintenance Free 48V DC alternator |
Output(Primary) | BENA | SINOCOX 7.5KVA |
Pole number | 4 |
Speed | 1500/1800 |
Voltage output | 48V DC |
Insulation | H |
Type of bearing / Brush | Single / Brushless Self excitation |
Available Receptacles | To be determined upon negotiation |
Lighting |
Lighting | LED, 500W |
Lamp No. | 8×500W |
Lamp type | LED lamp 48V DC |
Total lumens | 500000 |
Housing Materials | Aluminum |
Mast Tower |
Type | Folded Hydraulic (KLT-10000) Multi-Sections Telescoping mast |
Total Height | 10 M |
Rotation | 360 Degree |
Mast Sections | Multi-Sections |
Operate for Extends | Hydraulic operation |
Outriggers |
Trailer / Cabinet | 5 points manual outriggers extended and all jack down |
Fork pocket and central lift point | Yes |
Wheel and Rim | 235R / 16'' |
Trailer Suspension System | Steel plate spring single axle |
Towing Type | Ring or Ball hitch |
Cabin | Twin service doors for easy maintenance, with lifting hanger and detachable roof for effortless handling – silent type |
Electric-Shutdown Protection |
Electric | MCCB-MCB Emergency Stop |
Connection | IP65 |
Weight | 1960KG |
Loading | 2 units in 20'GP/4 units in 40'HQ |
Dimention for shipping | 2250×1850×2380MM(Pack by Plastic) |
Gurantee | one year or 1000hours operation whichever comes first |
